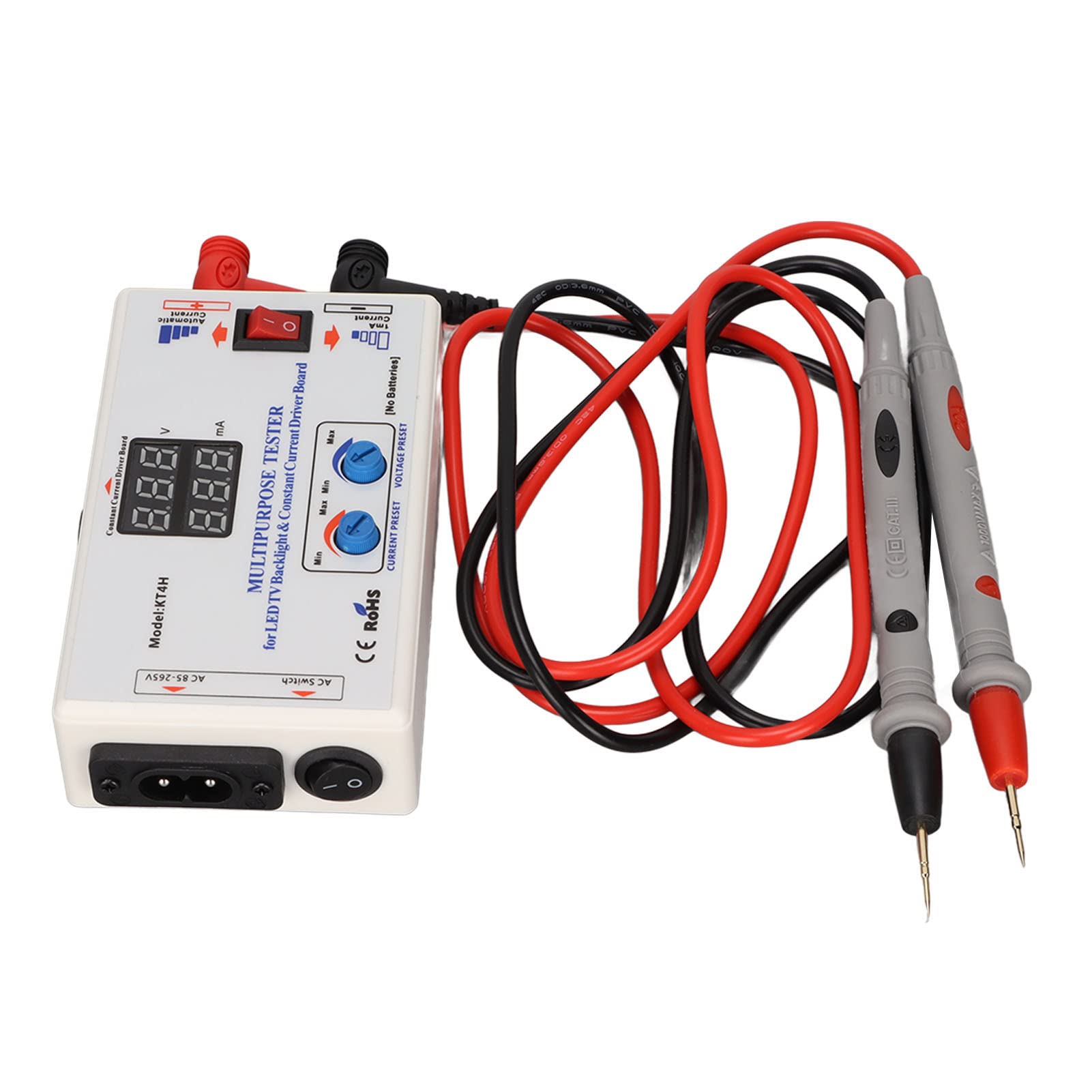

PUSOKEI LED Light and TV Backlight Tester - Universal Constant Current Board Tester for LED Lamp Beads, LCD TV Backlight Light Bar Repair - Diagnostic Tool for All LED Lights (KT4H) - Perfect for Home Theater Setup, TV Repair Shops, and DIY Electronics Projects
Delivery & Return:Free shipping on all orders over $50
Estimated Delivery:7-15 days international
People:6 people viewing this product right now!
Easy Returns:Enjoy hassle-free returns within 30 days!
Payment:Secure checkout
SKU:96138072
Product Description
Specification: Item Type: LED Backlight Tester Material: ABS Model: KT4H Input Voltage: AC 85-265V Output Voltage: DC 0-330V(Auto, Adjustable) Voltmeter Accuracy: ≤(±0.5±1%Vout)V Internal Output Current: 20-150mA (Auto, Adjustable) Constant Current Board Test Current: 0-999mA Ammeter Accuracy: ≤(±2±1%Iout)mA Input Power: 50VA (Maximum) 0 Working Stability: -20℃~+40℃ Package List: 1 x LED Backlight Tester 1 x Power Cord 1 x Constant Current Board Socket Connection Cable 1 x Constant Current Board Tester Connection Cable 2 x Meter Pen 1 x Storage Bag 1 x Manual
Product Features
Check the Fault: LED TV backlight tester can test LED TV backlight and separate test TV constant current board, easily determine the LCD TV fault problem
Voltage Test: LED TV backlight tester with manual stepless presetting of the open circuit voltage (20‑330VDC), intelligent and fully automatic adaptation to the LED light source voltage during testing, no adjustment required.
Current Test: LED TV backlight tester can manually and steplessly preset the maximum short circuit limit current (20‑150mA), the current is intelligently and fully automatic during the test.
Effective Test: When the output voltage is preset to 20 or below, the current of 1mA grade can be used to test offline the voltage parameters of the power supply legs of a variety of ICs, which can simply determine whether the IC is good or bad.
Easy to Use: LED lamp tester has a special additional lmA accuracy wide voltage (0‑330V) constant current source output, which allows you to develop various clever applications on your own.
