Product Description

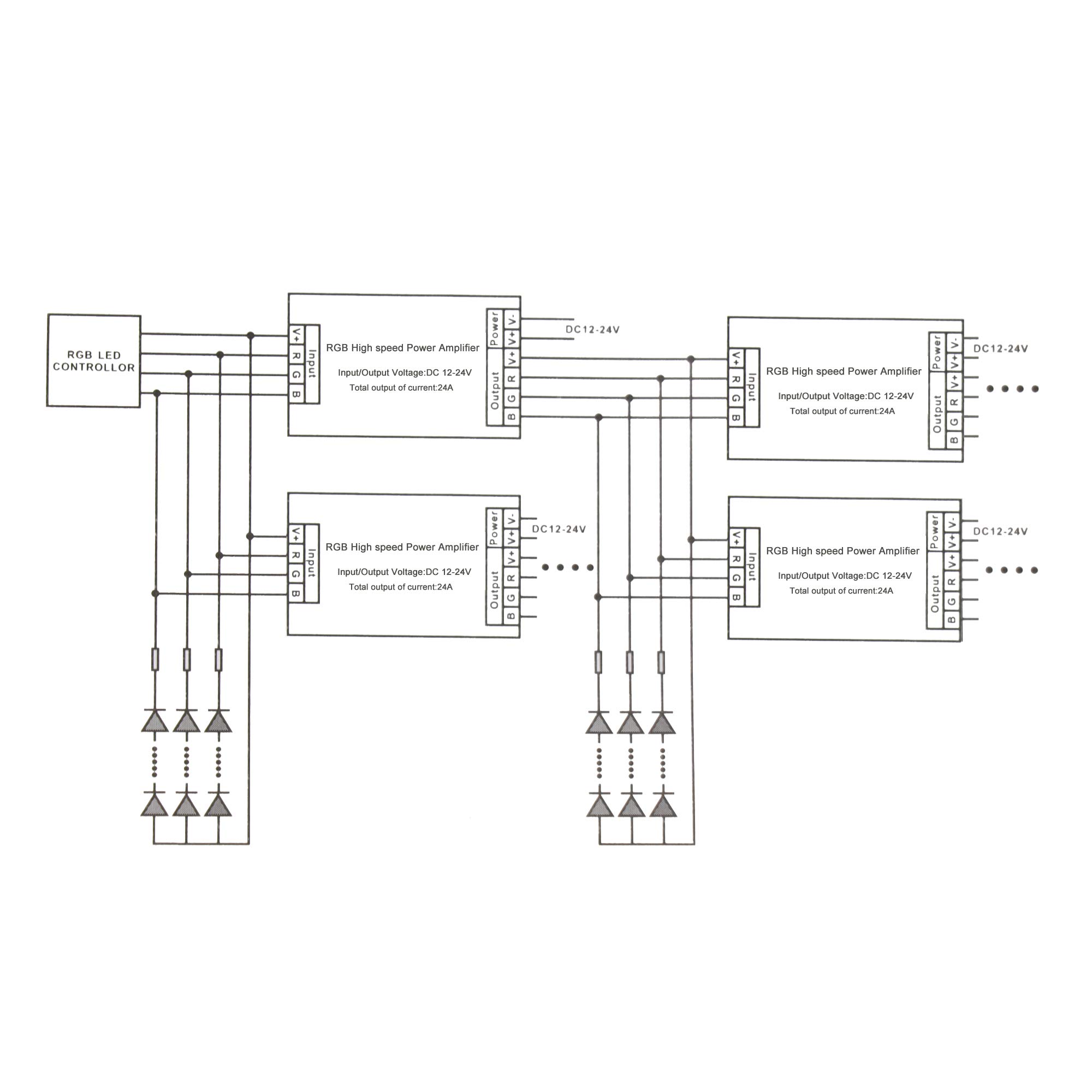

Function Amplify the red, green, blue three group signal of 3 channel controller, improve the system with load capacity, and has minimal delay, but can keep synchronism in cascade. The outlet should be connected correctly according to the color shown in the wiring diagram. Can't be wrong attached, in order to avoid short-circuit. Specification Working temperature£º-20~60¡æ Input voltage£ºDC12-24V Signal voltage: DC 12V-24V Input signal: RGB common anode PWM dimming signal Dimension: L145*W76.8*H20.6mm Output£º3 channel Connection mode: Common anode Output current: max 8A (each channel) Output power: max 288W(12V), max 576W(24V) Delay time: 20NS Package included: 1pc * RGB high speed power Amplifier
Product Features
Amplifier the red, green, blue three group signal of 3 channel controller. improve the system with load capacity.
Supply voltage DC12V/24V. Output 3 channel. Max Load Current 8A for each channel. Total Output of Current 24A.
Output power max 288W(12V), max 576W(24V).
The input voltage is DC 12-24V, and can't connect to other voltage.
Brand LEDENET.
Customer Reviews
Works very well, does not heat-up, delay not noticeable. Well priced and well made.
